Biến tần 1 pha 110VAC 0.2kW Kinco CV20-1S-0002G

147 lượt xem

Biến tần 1 pha 110VAC 0.2kW Kinco CV20-1S-0002G
Input Voltage Range of 100-120V
Power up to 0.25 HP
Methods of Control: V/F control, Vector control
Overcurrent, overvoltage, under-voltage, overheat, overload and missing phase protection.
Sleep/wake up function

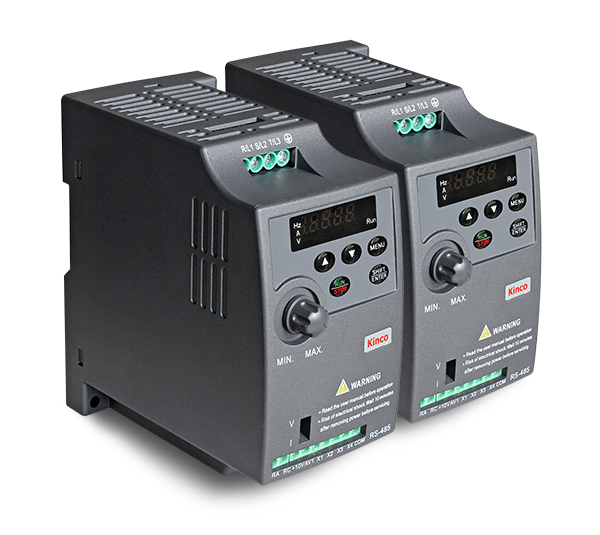

The Kinco CV20 1S VFD Series combines power and performance into one compact package. With 120VAC Single-Phase input, this drive offers up to 200 Watts (0.25 HP) of power to drive your Three-Phase AC motor. This series offers unique control methods to achieve high torque and accuracy, and variable speed range. Other features for this drive includes flexible I/O terminals, overcurrent, overvoltage, undervoltage, and overheat protection, acceleration and deceleration times, and vector control.

Item	Input voltage	Rated Power (HP)	Rated Current (A)	Installation Type	IP Rating	Cooling Method	Downloads	Price (USD)	Quantity Discounts	More
CV20-1S-0002G	Single-Phase, 100-120V	0.25	2.5	Wall Mount/DIN Rail	IP20	Fan	Spec Sheet (PDF) Software Download	0	view here

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

Wiring Diagram
Dimensions
