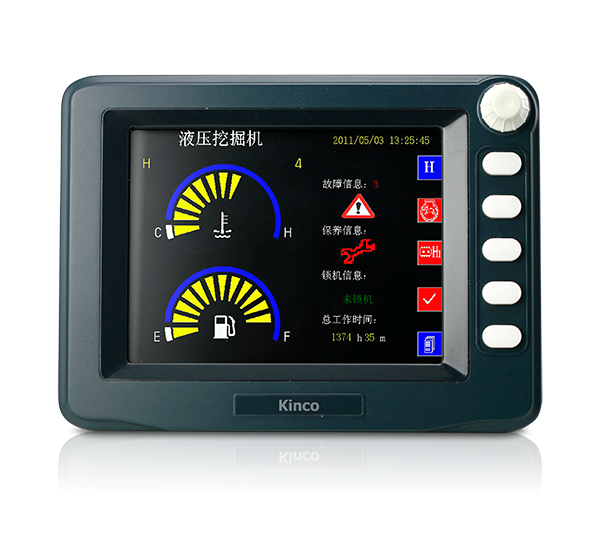

Màn hình HMI 5.7 inch Kinco CZ6 (2 COM, 1 USB Host, 1 CANopen)
Thông số kỹ thuật
| Performance specification | ||
| Display size | 5.7″ TFT | |
| Resolution | 640*480 pixel | |
| Display color | 65536 colors | |
| Backlight | LED | |
| Brightness | 700cd/m2 | |
| Backlight life | More than 50000 hours | |
| CPU | RISC Cortex-A8 800MHz | |
| Storage | 256MB Flash + 256MB RAM | |
| RTC | Built-in RTC | |
| Extensible memory | 1 USB Host | |
| Printer port | USB Host/serial port | |
| Program download | 1*USB 2.0/ Serial port | |
| COM port | 1*CANopen, COM0: RS485, COM2: RS232 | |
| Extended interface | None | |
| Electrical specification | ||
| Input power supply | DC9V~36V | |
| Rated power | 10W @24VDC (isolated) | |
| Allowable loss of power | <3ms | |
| Insulation resistance | Over 50MΩ@500V DC | |
| Hi-pot test | 500V AC 1 minute | |
| Structure specification | ||
| PCB | None of spraying | |
| Shell color | Navy Blue | |
| Shell material | Engineering plastic | |
| Dimensions(mm) | 180.3×133.9×70.7(mm) | |
| Cutout size(mm) | 171×125(mm) | |
| Weight | 1 Kg | |
| Environment specification | ||
| Operating temperature | -20～60℃ | |
| Operating humidity | 10～90% non-condensing | |
| Storage temperature | -30～80℃ | |
| Storage humidity | 10～90% non-condensing | |
| Shockproof test | 10~500Hz, 30m/s², X,Y,Z direction/hour | |
| Cooling method | Natural air cooling | |
| Certification | ||
| Degree of protection | IP65 (whole body) | |
| CE certification | EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 | |
| Software | ||
| Configuration software | Kinco DTools V3.3 and above | |
