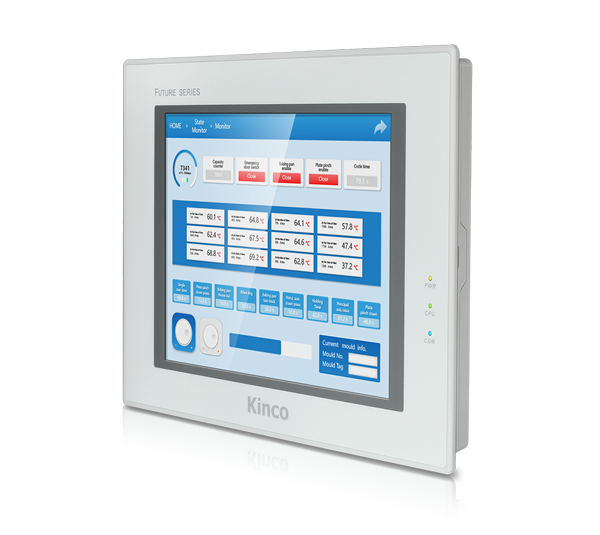

Màn hình cảm ứng HMI 10.4 inch Kinco F104E-CAN (3 COM, 2 USB Host, 1 SD Card, 1 Ethernet, 1 CANopen)
Thông số kỹ thuật
| Model | F104E | F104E-CAN |
| Performance specification | ||
| Display size | 10.4″ TFT | |
| Resolution | 1024*768 pixel | |
| Display color | 16.77M color | |
| Backlight | LED | |
| Brightness | 450cd/m2 | |
| Backlight life | More than 50000 hours | |
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) | |
| CPU | 32bit RISC Cortex-A9 1GHz | |
| Storage | 4GB Flash Memory+512MB Memory | |
| RTC | Built-in RTC+32KB | |
| Extensible memory | 2 USB Host + 1 SD Card | |
| Printer port | USB Host/ Serial port | |
| Ethernet | 10/100MHz self-adaption | |
| Extended interface | None | 1*CANopen |
| Program download | USB Slave/U Disk/Ethernet | |
| COM port | COM0: RS232/RS485/RS422, COM1: RS232/RS485/RS422, COM2: RS232 | |
| Audio output | 1*Audio output | |
| Electrical specification | ||
| Input power supply | DC10V~DC28V,Built-in isolation power supply | |
| Rated power | 12W @24V DC | |
| Allowable loss of power | <3ms | |
| Insulation resistance | Over 50MΩ@500V DC | |
| Hi-pot test | 500V AC 1 minute | |
| Structure specification | ||
| Shell material | Engineering plastic | |
| Dimensions(mm) | 310.6×230.6×55.7 (mm) | |
| Cutout size(mm) | 299×219 (mm) | |
| Weight | 1.7 Kg | |
| Environment specification | ||
| Operating temperature | -10～50℃ | |
| Operating humidity | 10～90% non-condensing | |
| Storage temperature | -20～60℃ | |
| Storage humidity | 10～90% non-condensing | |
| Shockproof test | 10~500Hz, 30m/s², X,Y,Z direction/hour | |
| Cooling method | Natural air cooling | |
| Certification | ||
| Degree of protection | Conforming to IP65 certification | |
| CE certification | CE compliant | |
| Software | ||
| Configuration software | Kinco DTools V3.4 and above version | |
