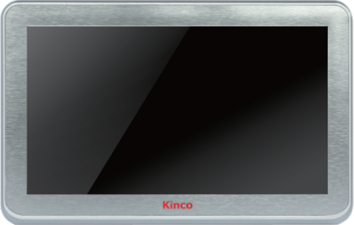

Màn hình cảm ứng HMI 10.1 inch chống nước IP65 Kinco F10N

86 lượt xem
Màn hình cảm ứng HMI 10.1 inch chống nước IP65 Kinco F10N
  • Màn hình cảm ứng HMI 10.1 inch chống nước IP65 Kinco F10N
  • 10.1” Display
  • 16.77 Million True Color
  • IP65 Protection, Water-Resistant and Vibration-Proof
  • Bracket Mounting
  • High-Speed Process with 800MHz CPU
  • High Resolution up to 1280 x 800 Pixels
  • Easy to Use
  • Update Project Program by USB Disk
Chia sẻ:

Màn hình cảm ứng HMI 10.1 inch chống nước IP65 Kinco F10N

The F10N is a Splash-Proof and Vibration-Proof HMI product that will make your application run smoothly and efficiently. This F10N HMI comes with a 16.77 million true color display mode that gives your touch screen rich color and incomparable resolution. The F10N has an IP Rating of 65 which protects it from low pressure water jets from any direction and is totally protected dust ingress. It can allow limited ingress. With the simple, convenient and powerful configuration software, the user can master its design method and create first-class programs efficiently.



Item Display Size CPU Flash SDRAM Serial Ports Expansion Port Expandable Memory Ethernet Downloads Price (USD) Quantity Discounts More
10.1" 800MHz 128MB 128MB 2 N/A 1 USB Host N/A Spec Sheet (PDF) Software Download 0
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

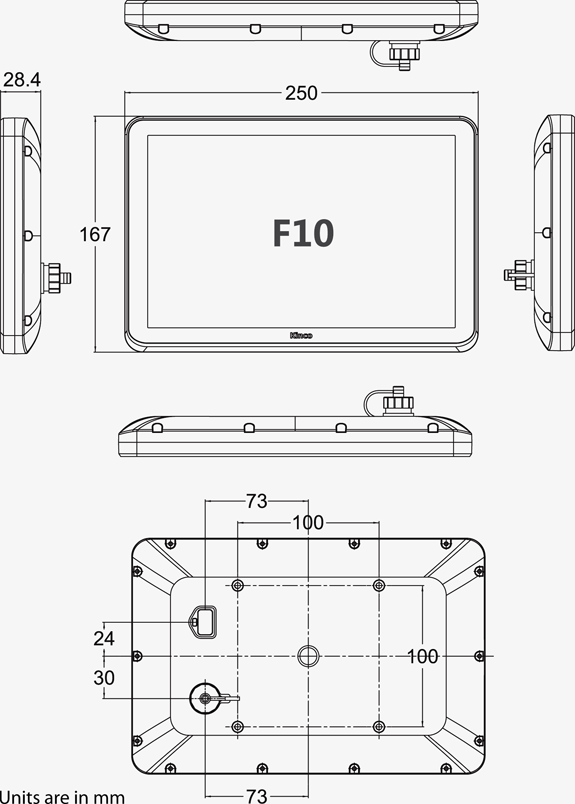

  • Dimensions

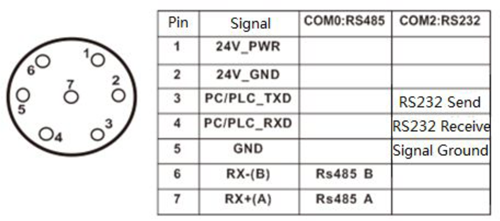

  • Connector Diagram
