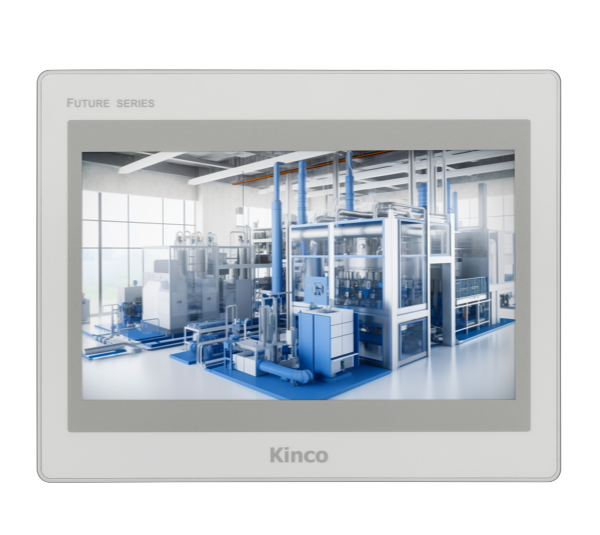

Màn hình cảm ứng HMI 10.1 inch Kinco F2100E2 (2 COM, 1 USB Host, 2 Ethernet)
Thông số kỹ thuật
| Performance specification | |
| Display size | 10.1″ TFT |
| Display area | 222.72mm(W)x125.28mm(H) |
| Resolution | 1024*600 pixel |
| Display color | 16.77M color |
| Visual angle | 70/70/60/60(L/R/U/D) |
| Contrast ratio | 500:1 |
| Backlight | LED |
| Brightness | 350cd/m2 |
| Backlight life | More than 30000 hours |
| Touch Panel | 4 line precision resistance network |
| CPU | Quad-core 1.8GHz |
| Storage | 8GB Flash Memory+1GB Memory |
| RTC | Built-in(512KB) |
| Extensible memory | 1 USB Host |
| Printer port | USB Host/ Serial port |
| Ethernet | LAN0:10/100/1000 Mbps; LAN1:10/100 Mbps |
| Program download | Ethernet port/USB Slave/U disk |
| COM port | COM0:RS232/RS485/RS422;COM2:RS232 |
| Electrical specification | |
| Input power supply | DC10V~DC28V,Built-in isolation power supply |
| Rated power | 7W @24V DC |
| Allowable loss of power | <3ms |
| Insulation resistance | Over 50MΩ@500V DC |
| Hi-pot test | 500V AC 1 minute |
| Structure specification | |
| Shell material | Plastic |
| Dimensions(mm) | 271*213*38mm |
| Cutout size(mm) | 260*202mm |
| Weight | 1.1 Kg |
| Environment specification | |
| Operating temperature | 0～50℃ |
| Operating humidity | 10～90% non-condensing |
| Storage temperature | -20～60℃ |
| Storage humidity | 10～90% non-condensing |
| Shockproof test | 10~500Hz, 30m/s², X,Y,Z direction/hour |
| Cooling method | Natural air cooling |
| Certification | |
| Degree of protection | Conforming to IP65 certification (4208-93) |
| CE certification | EN IEC61000-6-4:2019，EN IEC61000-6-2:2019 |
| Software | |
| Configuration software | Kinco DToolsPro |
