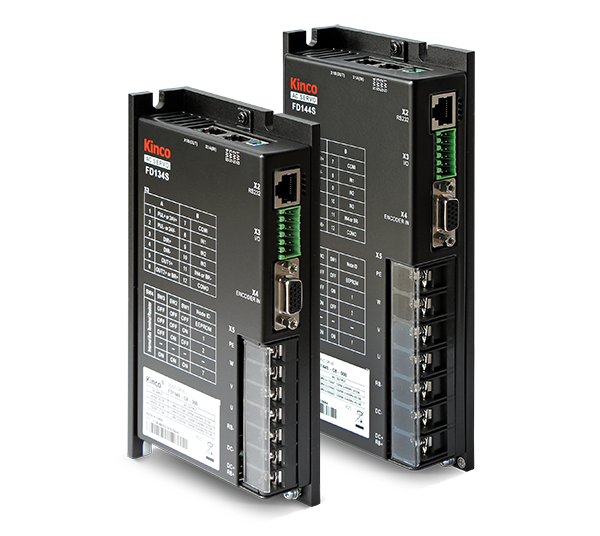

Bộ điều khiển DC Servo Driver 1200~1500W, RS485 & Pulse Kinco FD144S-LB-000
The FD144S-LB-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive package is the flexibility of using a single Servo Drive that can accommodate motors with a power rating range of 1260-1500W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The FD144S-LB-000 Servo Drive can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. The FD144S-LB-000 Servo Drive operates with 24-70VDC input. These drives come standard with an RS232 which can be operated using MODBUS Protocol, a RS485 port, or can be operated using our Free, Easy-to-Use Software. Please consult our Application Engineers for more information.
Note: To communicate to the drives, the RS-232-RJ45 Cable is required.
