Động cơ Servo AC tích hợp bộ điều khiển 200W Kinco FD322S-02-60S-AAK-AKH

156 lượt xem
Động cơ Servo AC tích hợp bộ điều khiển 200W Kinco FD322S-02-60S-AAK-AKH
  • Động cơ Servo AC tích hợp bộ điều khiển 200W Kinco FD322S-02-60S-AAK-AKH
  • 70VDC and 220VAC Options
  • 200W Power Rating
  • Rated Torque of 91 oz-in
  • Maximum Speed of 3000 rpm
  • 2500 PPR Incremental Encoder Included
  • IP65 for Body, IP54 Shaft Seal
  • CE Certified
Chia sẻ:

Động cơ Servo AC tích hợp bộ điều khiển 200W Kinco FD322S-02-60S-AAK-AKH

The SME60S Series AC Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These motors boast peak torque values up to 273 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and come equipped with a 2,500 PPR incremental encoder. It is available in a 60mm square flange size, with a brake option.

For replacement cables and additional servo system accessories, click here.

Item Rated Power (Watts) Rated Voltage (VDC) Rated Speed (rpm) Rated Torque (Nm) Rated Current (Arms) Brake Drive Control Capabilities Downloads Price (USD) Quantity Discounts More
200 88-126 VAC 3000 0.64 1.9 No Position, Speed, Torque Spec Sheet (PDF) Software Download 0
200 88-126 VAC 3000 0.64 1.9 Yes Position, Speed, Torque Spec Sheet (PDF) Software Download 0
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.
  • FD332S Driver Dimensions

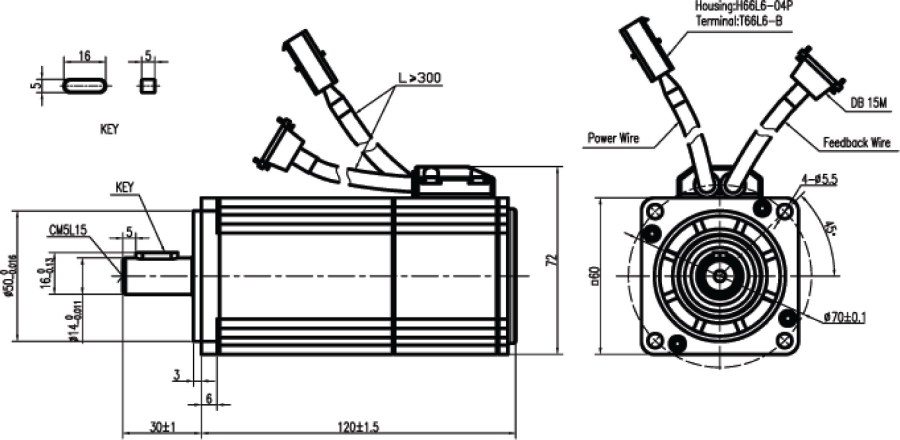

  • SMH60S-0020 Motor Dimensions
  • Driver Specifications
  • Motor Specifications
  • Motor Pinout
  • Torque Curve
