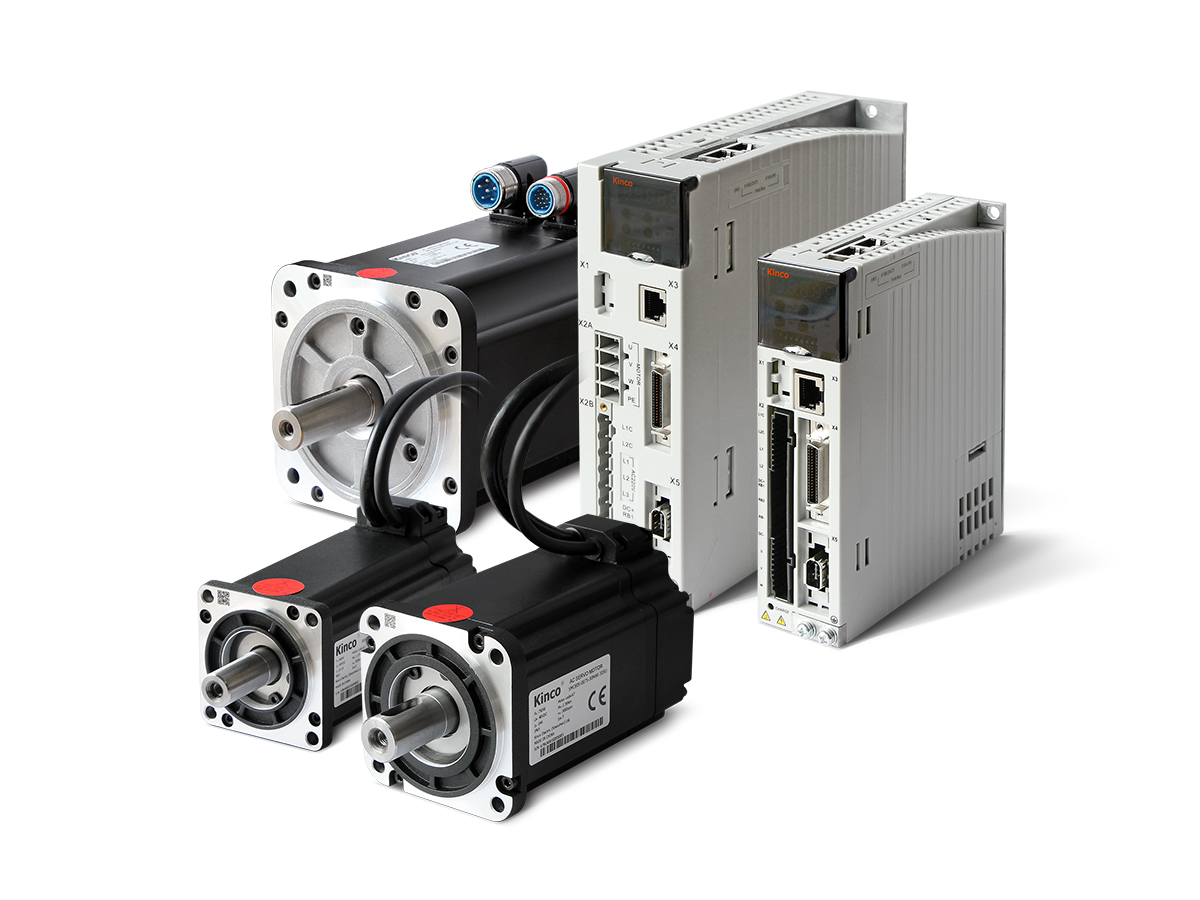

Bộ điều khiển AC Servo Driver 200~750W, RS485 & Pulse Kinco FD322S-LA-000

89 lượt xem

Bộ điều khiển AC Servo Driver 200~750W, RS485 & Pulse Kinco FD322S-LA-000
88-126VAC Single-Phase Input
50-200 Watt Power Range
Position, Speed, and Torque Control
Communication Ports: RS232 and RS485
2500PPR Incremental Encoder
Comminucation Software
- Configure Parameters
- I/O Signal Monitoring
- Speed and Position Curves
- Gain Adjustments
Programmable Inputs and Outputs
- 7 Inputs
- 4 Outputs
CE Certified

The FD322S-LA-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this Servo Drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 200-750W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The FD322S-LA-000 Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The FD322S-LA-000 Servo Drive operates with single-phase 88-126VAC input. These drives come standard with an RS232 and RS485 communication port and can be operated using MODBUS Protocols or the Free, Easy-to-Use Software. Please consult our Application Engineers for more information.

Item	Rated Power (Watts)	Rated Voltage	Drive Control Capabilities	COMM	I/O Signals	Downloads	Price (USD)	Quantity Discounts	More
FD322S-LA-000	200-750	88-126 VAC	Position, Speed, Torque	MODBUS through RS485	7 Inputs 5 Outputs	Spec Sheet (PDF) Software Download	0	view here

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

Dimension
I/O Signal Connection
X1 Connector pinout
