Động cơ Servo AC tích hợp bộ điều khiển 1000W Kinco FD332S-10-80S-AAK-AKH

136 lượt xem

Động cơ Servo AC tích hợp bộ điều khiển 1000W Kinco FD332S-10-80S-AAK-AKH
88-126VAC Single Phase Input
Rated Torque of 3.18 Nm
Power Rating up to 1000 Watts
2500 PPR Incremental Encoder
Maximum Speed of 5500 RPM
IP65 for Body, IP54 Shaft Seal
Brake Option Available
Position, Speed, and Torque Control
Communication Ports: RS232 and RS485

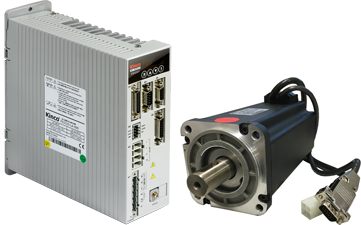

The KNC-PKS-FD332S-10-80S Servo System includes a 1000 Watt SMH80S-0100 AC Servo Motor operated by the FD332S-LA-000 Drive. These packages are ideal and provide easy start-ups, convenience, and performance. The Servo Motors included in these packages provide torque up to 3.18 Nm. The FD332S-LA-000 Drive offers current forward-feedback control, speed viewer, and inertia viewer; providing for improved response performance. Each system includes a 5m Motor Power Cable and a 5m Encoder Cable. If purchasing the option with a Brake then a 5m Brake Cable will be included as well.

For replacement cables and additional servo system accessories, click here.

Item	Rated Power (Watts)	Rated Voltage (VDC)	Rated Speed (rpm)	Rated Torque (Nm)	Rated Current (Arms)	Brake	Drive Control Capabilities	Downloads	Price (USD)	Quantity Discounts	More
FD332S-10-80S-AAK-AKH	1000	88-126 VAC	3000	3.18	10	No	Position, Speed, Torque	Spec Sheet (PDF) Software Download	0	view here
FD332S-10-80S-ABK-AKH	1000	88-126 VAC	3000	3.18	10	Yes	Position, Speed, Torque	Spec Sheet (PDF) Software Download	0	view here

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

Động cơ Servo AC tích hợp bộ điều khiển 1000W Kinco FD332S-10-80S-AAK-AKH

FD332S-10-80S-AAK-AKH

FD332S-10-80S-ABK-AKH
