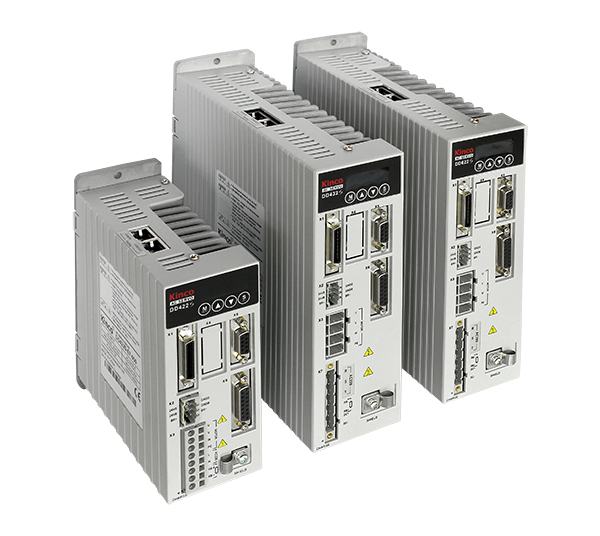

Bộ điều khiển AC Servo Driver 200~750W, CANopen Kinco FD422-AA-000
The FD422-LA-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive package is the flexibility of using a single servo drive that can accommodate motors with power ratings ranging from 200-750W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The FD422-LA-000 Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The FD422-LA-000 Servo Drive operates with single-phase 176-253VAC input. These drives come standard with an RS232 and RS485 communication port and can be operated using MOBBUS Protocols or the Free, Easy-to-Use Software. A CAN BUS is an optional port that is available upon request. Please consult our Application Engineers for more information.
Note: FD422 Series Servo Drives have been discontinued and are LTSOH (Limited to Stock on Hand). We recommend the FD422S Series as a suitable alternative.
