Biến tần 3 pha 220VAC 7.5 kW Kinco FV20-2T-0075G

394 lượt xem

Biến tần 3 pha 220VAC 7.5 kW Kinco FV20-2T-0075G
Input Voltage Range of 200-240V
Power of up to 10.0 HP
Frequency from 0 – 300Hz
Methods of Control: V/F control, Sensorless Flux Vector Control, Closed-Loop Vector Control
Built in EMI Filter and Brake Resistor
Modbus RTU or ASCII Protocol (RS485 baud rate up to 125000bps)
Supports Analog or Discrete Input Control, Communication Control, or Panel Control with Detachable Remote

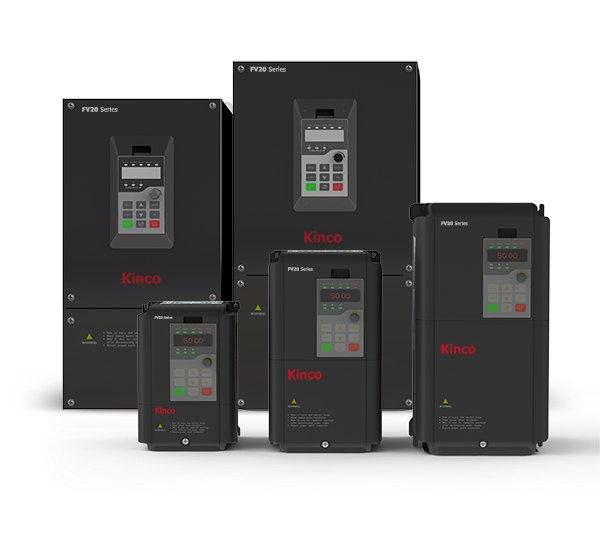

The Kinco FV20 VFD Series combines power and performance into one compact package. With 240VAC Three-Phase input, this drive offers up to 7.5 kW (10.0 HP) of power to drive your Three-Phase AC motor. This series offers unique control methods to achieve high torque and accuracy, and variable speed range. Other features for this drive includes flexible I/O terminals, overcurrent, overvoltage, undervoltage, and overheat protection, acceleration and deceleration times, and vector control.

Item	Input voltage	Rated Power (HP)	Rated Current (A)	Installation Type	IP Rating	Cooling Method	Downloads	Price (USD)	Quantity Discounts	More
FV20-2T-0075G	Three-Phase, 200-240V	10.00	17	Wall-Mount	IP20	Fan	Spec Sheet (PDF) Software Download	0	view here

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

Wiring Diagram

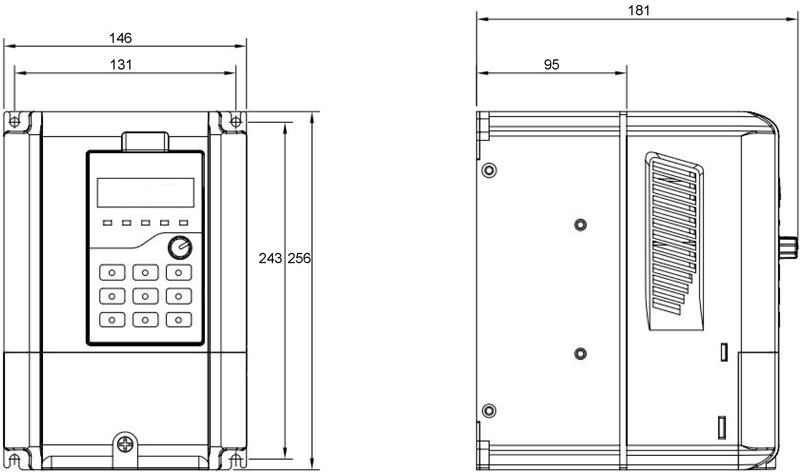

Dimensions
