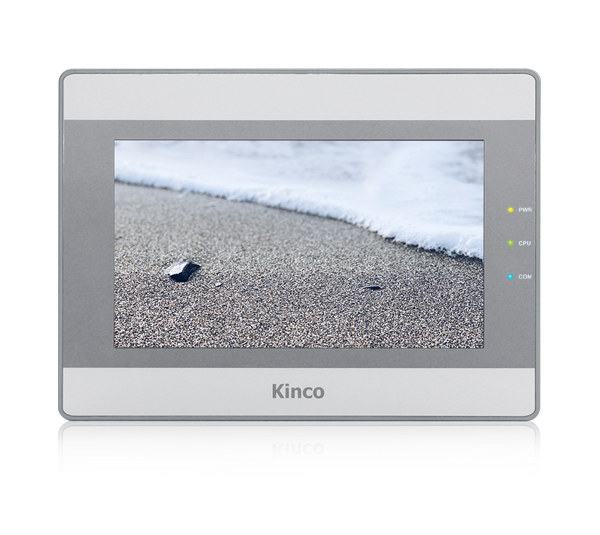

Màn hình cảm ứng HMI 7 inch Kinco GT070E2 (3 COM, 1 USB Host, 2 Ethernet)
Thông số kỹ thuật
| Model | GT070E2 |
| Performance specification | |
| Display size | 7″ TFT |
| Display area | 154.08mm(W)*85.92mm(H) |
| Resolution | 1024×600 px |
| Display color | 16.7M |
| Display angle of view | 70/70/50/70(left/right/up/down) |
| Contrast ratio | 500:1 |
| Backlight | LED |
| Brightness | 450cd/m2 |
| Backlight life | More than 30000 hours |
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) |
| CPU | ARM RISC 32Bit 800MHz |
| Storage | 256MB Flash Memory+256MB Memory |
| RTC | Built-in RTC+32KB |
| Extensible memory | 1 USB Host |
| Printer port | USB Host/ serial port |
| Ethernet | 2*10/100M adaptable Ethernet interface |
| Program download | U disk/ Ethernet |
| COM port | COM0：RS232/RS485/RS422； COM1：RS485/RS422；COM2：RS232 |
| Electrical specification | |
| Rated power | 4.2W @24VDC |
| Input power supply | DC10.8V~DC28V, Built-in isolation power supply |
| Allowable loss of power | <3ms |
| Insulation resistance | Over 50MΩ@ 500V DC |
| Hi-pot test | 500V AC 1 minute |
| Structure specification | |
| PCB | Exquisite spraying |
| Shell material | Engineering plastic |
| Dimensions(mm) | 204×150×37(mm) |
| Cutout size(mm) | 192*138 (mm) |
| Weight | 0.6Kg |
| Environment specification | |
| Operating temperature | 0° C ~ 5° C |
| Operating humidity | 10～90% non-condensing |
| Storage temperature | -20～60℃ |
| Storage humidity | 10～90% non-condensing |
| Shockproof test | 10~500Hz, 30m/s², X, Y, Z direction/hour |
| Cooling method | Natural air cooling |
| Certification | |
| Degree of protection | Conforming to IP65 certification |
| CE certification | Comply with EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005 |
| Software | |
| Configuration software | Kinco DTools V3.3 and above |
