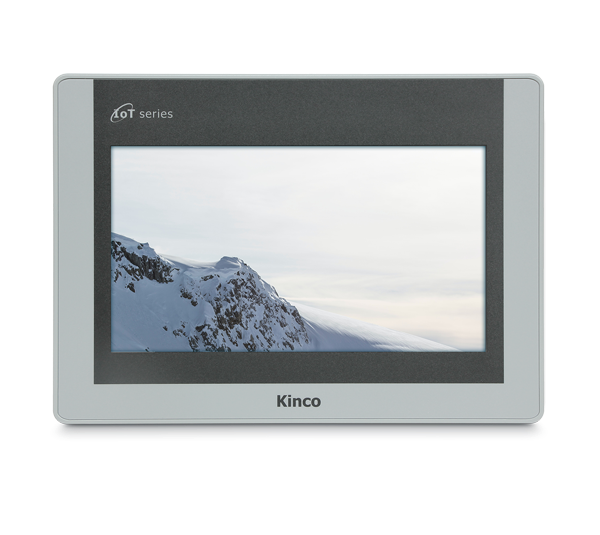

Màn hình cảm ứng HMI 7 inch Kinco GT070HE (2 COM, 1 USB Host, Ethernet)
Thông số kỹ thuật
| Model | GT070HE | GT070HE-4G | GT070HE-WiFi |
| Performance specification | |||
| Display size | 7″ TFT | ||
| Display area | 154.08 (W) x 85.92 (H) (mm) | ||
| Resolution | 800*480 pixels | ||
| Display color | 16.7M color | ||
| Display angle of view | 85/85/85/85(left/right/up/down) | ||
| Contrast ratio | 500:1 | ||
| Backlight | LED | ||
| Brightness | 450cd/m2 | ||
| Backlight life | More than 30000 hours | ||
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) | ||
| CPU | ARM RISC 32Bit 800MHz | ||
| Storage | 128MB NAND Flash Memory + 128MB DDR3 Memory | ||
| RTC | Built-in real time clock | ||
| Extensible memory | 1 USB Host | ||
| Printer port | USB Host/ Serial port | ||
| Internetwork | Ethernet | Ethernet/Cellular 2G/3G/4G | Ethernet/WiFi |
| Program download | USB Slave (Micro USB)/ U disk/ Ethernet | ||
| Cellular and Wireless | None | LTE-FDD Band 1/3/5/8
LTE-TDD Band 38/39/40/41 UMTS Band 1/8 GSM Band 3/8 |
IEEE802.11 b/g/n
802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm |
| VPN | Support HMI remote upload and download and screen monitoring, support PLC passthrough program upload and download and online debugging | ||
| Ethernet | 1*10/100M self-adaption | ||
| Communication port | COM0:RS232/RS485/RS422, COM2:RS232 | ||
| Electrical specification | |||
| Input power supply | DC10V~DC28V,Built-in isolation power supply | ||
| Rated power | 4.2W @24V DC | ||
| Allowable loss of power | <3ms | ||
| Insulation resistance | Over 50MΩ@500V DC | ||
| Hi-pot test | 500V AC 1 minute | ||
| Structure specification | |||
| PCB | None of spraying | ||
| Shell material | Engineering plastic | ||
| Dimensions(mm) | 204mm*150mm*37mm | ||
| Cutout size(mm) | 192mm*138mm | ||
| Weight | 0.5 Kg | ||
| Environment specification | |||
| Operating temperature | 0～50℃ | ||
| Operating humidity | 10～90% non-condensing | ||
| Storage temperature | -20～60℃ | ||
| Storage humidity | 10～90% non-condensing | ||
| Shockproof test | 10~500Hz, 30m/s², X, Y, Z direction/hour | ||
| Cooling method | Natural air cooling | ||
| Certification | |||
| Degree of protection | Conforming to IP65 certification (4208一93) | ||
| CE certification | CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 | ||
| Software | |||
| Configuration software | Kinco DTools V3.5.1 and above | ||
