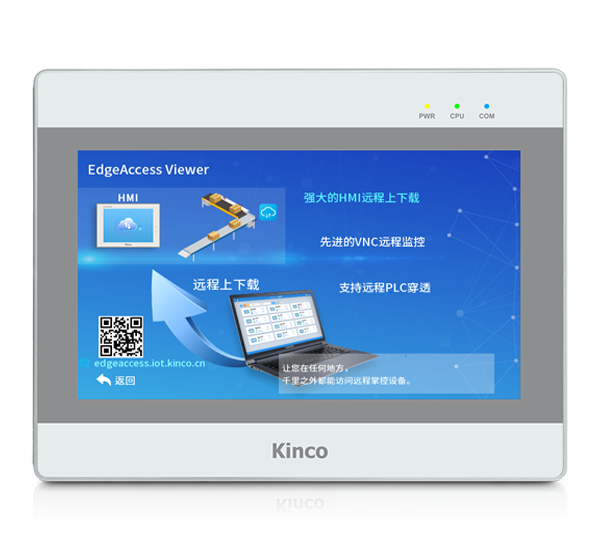

Màn hình cảm ứng HMI 10.1 inch Kinco GT100E2 (3 COM, 1 USB Host, 2 Ethernet)
Thông số kỹ thuật
| Model | GT100E2 | GT100E2-WiFi | GT100E2-4G | GT100E2-CAN |
| Performance specification | ||||
| Display size | 10.1″ TFT | |||
| Display area | 222.72(W)x125.28(H) | |||
| Resolution | 1024*600 pixels | |||
| Display color | 16.7M color | |||
| Display angle of view | 70/70/60/60(left/right/up/down) | |||
| Contrast ratio | 500:1 | |||
| Backlight | LED | |||
| Brightness | 350cd/m2 | |||
| Backlight life | More than 30000 hours | |||
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) | |||
| CPU | ARM RISC 32Bit 800MHz | |||
| Storage | 256MB NAND Flash Memory + 128MB DDR3 Memory | |||
| RTC | Built-in real time clock | |||
| Extensible memory | 1 USB Host | |||
| Printer port | USB Host/ Serial port | |||
| Network access | Ethernet | Ethernet, Wi-Fi | Ethernet, 4G wireless communication | Ethernet |
| Program download | USB Slave (Micro USB)/ U disk/ Ethernet | |||
| Bus port | None | 1*CANopen | ||
| Ethernet | 2*10/100M self-adaption | |||
| Communication port | COM0: RS232/RS485/RS422, COM1: RS485/RS422, COM2: RS232 | |||
| Electrical specification | ||||
| Input power supply | DC10.8V~DC28V,Built-in isolation power supply | |||
| Rated power | 5W @24V DC | |||
| Allowable loss of power | <3ms | |||
| Insulation resistance | Over 50MΩ@500V DC | |||
| Hi-pot test | 500V AC 1 minute | |||
| Structure specification | ||||
| PCB coating | Yes | |||
| Shell material | Engineering plastic | |||
| Dimensions(mm) | 271*213*38 mm | |||
| Cutout size(mm) | 260*202 | |||
| Weight | 1.1 Kg | |||
| Environment specification | ||||
| Operating temperature | -10～50℃ | |||
| Operating humidity | 10～90% non-condensing | |||
| Storage temperature | -20～60℃ | |||
| Storage humidity | 10～90% non-condensing | |||
| Shockproof test | 10~500Hz, 30m/s², X, Y, Z direction/hour | |||
| Cooling method | Natural air cooling | |||
| Certification | ||||
| Panel protection grade | IP65 compliant (4208-93) | |||
| CE certification | CE compliant (EN61000-6-4:2007+A1:2011, EN61000-6-2:2005) | |||
| Software | ||||
| Configuration software | Kinco DTools V3.5.3 and above | |||
