Module 8 kênh đầu vào số Kinco K621-08DX (DC 24V Input 8pts, Sink/Source)

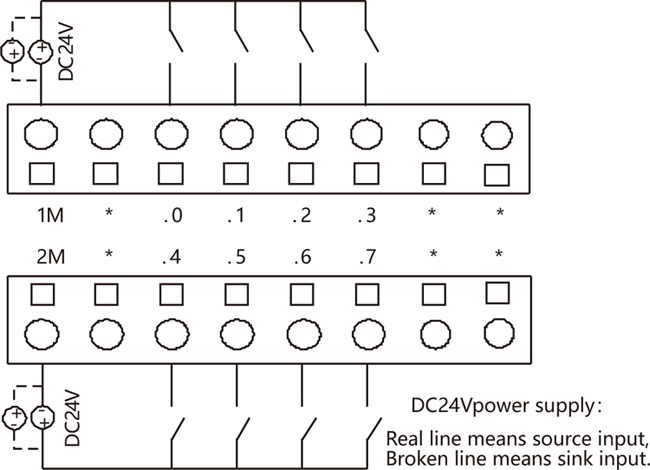

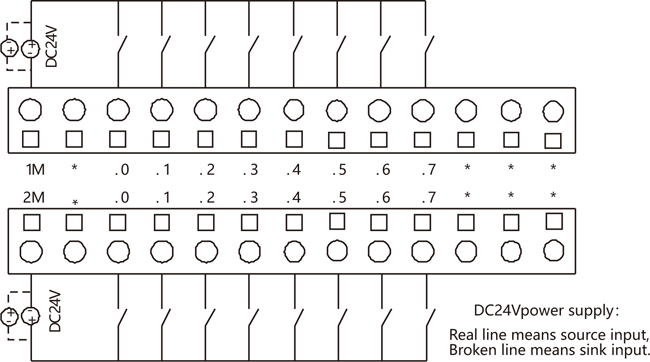

The PLC-K621 series of Discrete Input Expansion Modules are offered with either 8 or 16 inputs. These modules are attached to the PLC-K6 CPUs to expand beyond the onboard inputs. The PLC-K6 CPU series can handle up to 264 I/O points with a maximum of 14 expansion modules. If a user were to select the PLC-K6, equipped with 40 I/O points, and an additional 14 PLC-K621-16DX units, the user would achieve the maximum 264 I/O points within the constraint of 6 expansion modules. The PLC-K621-__DX modules come with the option to either sink or source the inputs; each input is rated for 3.5 mA. All modules are opto-isolated so units are not damaged.
