Module 16 kênh đầu vào số Kinco K621S-16DX

794 lượt xem

Module 16 kênh đầu vào số Kinco K621S-16DX (DC 24V Input 16pts, Sink/Source)
Digital Inputs: 16 Channels
Inputs (PNP/NPN)
Powered by Expansion Bus
16 Channels (8 Channels/Group)
Power Supply: 24VDC

Module 16 kênh đầu vào số Kinco K621S-16DX (DC 24V Input 16pts, Sink/Source)

The K621S Expansion Modules are offered with 16 Digital Inputs (PNP/NPN). The optional expansion modules are attached to the KNC-PLC-K615S CPU to expand beyond the onboard inputs and outputs. The K615S CPUs can handle up to 272 I/O points with a maximum of 16 K6S expansion modules.

Item	Module Type	Input Points	Output Points	Input Type	Output Type	Downloads	Price (USD)	Quantity Discounts	More
K621S-16DX	Expansion Module, Discrete Inputs	16	N/A	Sinking or Sourcing	N/A	Spec Sheet (PDF) Software Download	0	view here

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

Dimensions

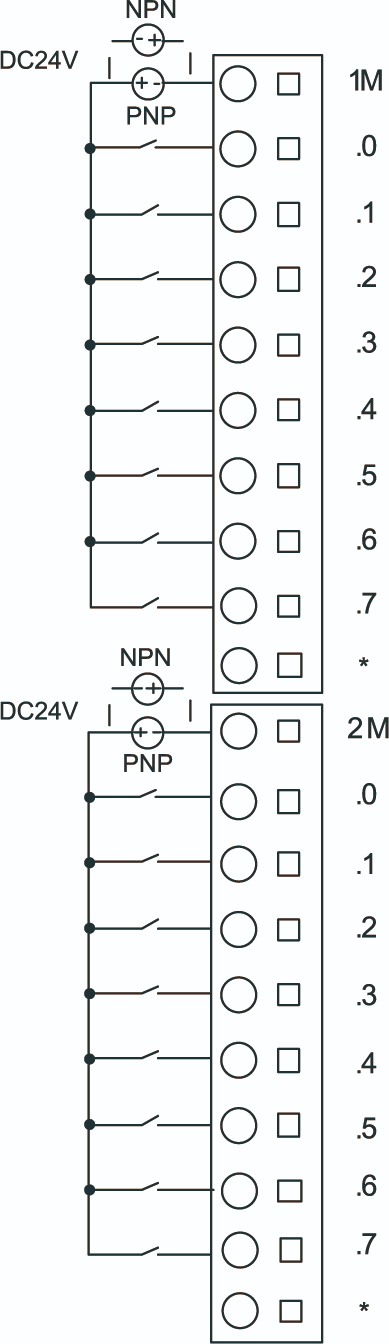

Wiring
