Module 4 đầu vào nhiệt độ TC Kinco K631S-04TC

784 lượt xem
Module 4 đầu vào nhiệt độ TC Kinco K631S-04TC
  • Module 4 đầu vào nhiệt độ TC Kinco K631S-04TC (4 channels thermocouple Input (J type, K type, E type, S type, T type))
  • 4 Channels of Thermocouple Input (04TC)
  • 4 Channels of Thermal Resistance (RTD Input (04RD)
  • 24-bit Resolution
  • Support J-type, K-type, E-type, S-type, T-type Thermocouples (04TC)
  • Cold Junction Compensation, External Compensation Optional (04TC)
  • Support PT100, Cu50, Pt1000 Resistance Forms (04RD)
  • Support two-wire, three-wire, connection methods (04RD)
  • Accuracy 0.1% F.S. (Full Scale) (04TC)
  • Temperature ±0.6°C; Resistance ±10 (04RD)
Chia sẻ:

Module 4 đầu vào nhiệt độ TC Kinco K631S-04TC (4 channels thermocouple Input (J type, K type, E type, S type, T type))

The K631S Expansion Modules are offered with 4 Analog Inputs for temperature sensing. The optional expansion modules are attached to the K615S CPU to expand beyond the onboard inputs and outputs. The K615S CPUs can handle up to 272 I/O points with a maximum of 16 K6S expansion modules.

Item Module Type Input Points Output Points Input Type Output Type Downloads Price (USD) Quantity Discounts More

K631S-04TC

 Expansion Module, Analog Inputs 4 N/A J-type, K-type, S-type, T-type N/A Spec Sheet (PDF) Software Download 0
view here

K631S-04RD

 Expansion Module, Analog Inputs 4 N/A Pt100, Cu50, Pt1000, Resistor N/A Spec Sheet (PDF) Software Download 0
view here
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.
  • Dimensions

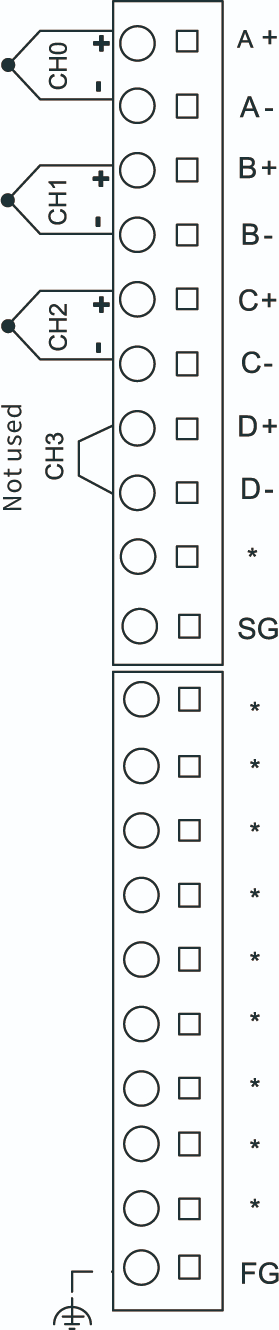

  • 04TC Wiring

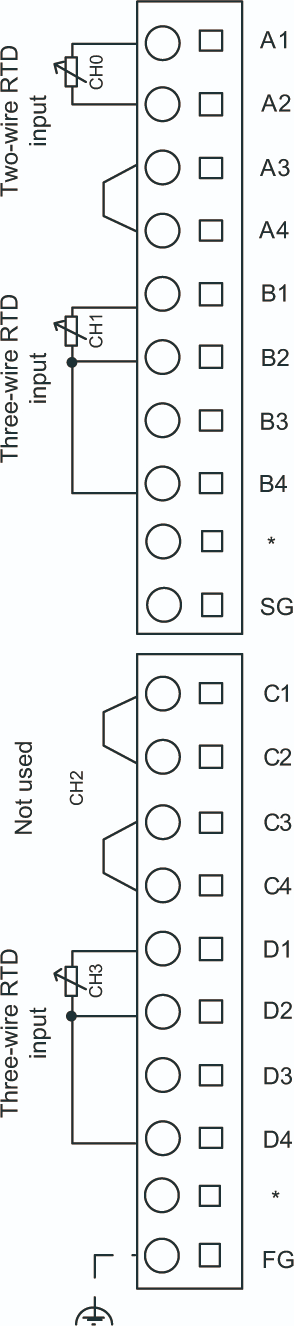

  • 04RD Wiring
