Module 2 đầu ra + 4 đầu vào tương tự Kinco K633S-06IV

783 lượt xem

Module 2 đầu ra + 4 đầu vào tương tự Kinco K633S-06IV (2-channel AO + 4-channel AI, 4-20mA/1-5V/0-20mA/0-10V)
Analog Input 4: 4-20mA, 1-5V, 0-20mA, 0-10V
Analog Output 2: 4-20mA, 1-5V, 0-20mA, 0-10V
12-bit Resolution, Accuracy 0.3% F.S. (Full Scale)

Module 2 đầu ra + 4 đầu vào tương tự Kinco K633S-06IV (2-channel AO + 4-channel AI, 4-20mA/1-5V/0-20mA/0-10V)

The K633S Expansion Modules are offered with 4 Analog Inputs and 2 Analog Outputs. The optional expansion modules are attached to the K615S CPU to expand beyond the onboard inputs and outputs. The K615S CPUs can handle up to 272 I/O points with a maximum of 16 K6S expansion modules.

Item	Module Type	Input Points	Output Points	Input Type	Output Type	Downloads	Price (USD)	Quantity Discounts	More
K633S-06IV	Expansion Module, Analog I/O	2	4	4-20mA, 1-5V, 0-20mA, 0-10V	4-20mA, 1-5V, 0-20mA, 0-10V	Spec Sheet (PDF) Software Download	0	view here

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

Dimensions

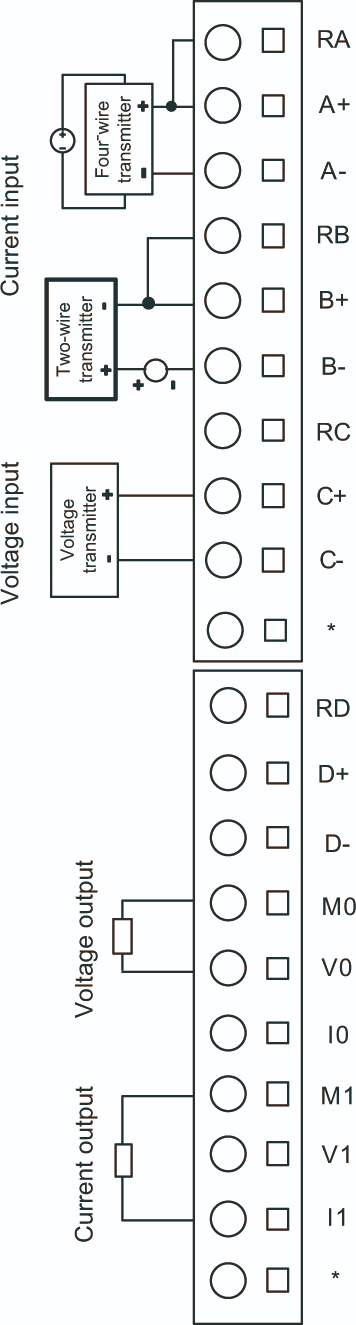

Wiring
