Bo mạch BD mở rộng 1 kênh đầu vào số Kinco KB6-4DI (DI 4*DC24V)
The KB6 Expansion Boards are conencted directly into the avaiable slots on the top of the K606 an K608 CPU units. Available with 2 Com Ports, 4 Digital Inputs, 4 Digital Outputs or CAN Communication, these are inexpesinve ways to add functionality to your PLC CPU.
| Item | Module Type | Input Points | Output Points | Input Type | Output Type | Downloads | Price (USD) | Quantity Discounts | More |
|---|---|---|---|---|---|---|---|---|---|

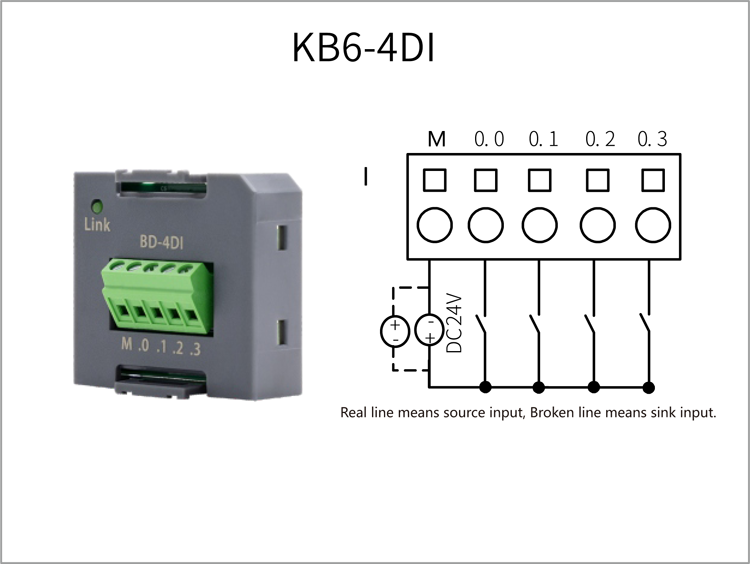

KB6-4DI |
Expansion Board, Discrete Inputs | 4 | N/A | Sinking or Sourcing | N/A | Spec Sheet (PDF) Software Download | 0 |
view here
|
|

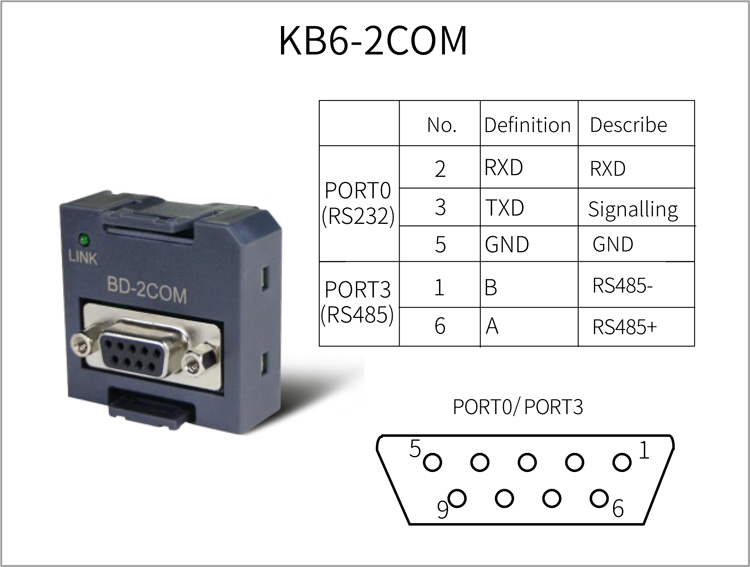

KB6-2COM |
Expansion Board, RS232/485 Communication | N/A | N/A | N/A | N/A | Spec Sheet (PDF) Software Download | 0 |
view here
|
|

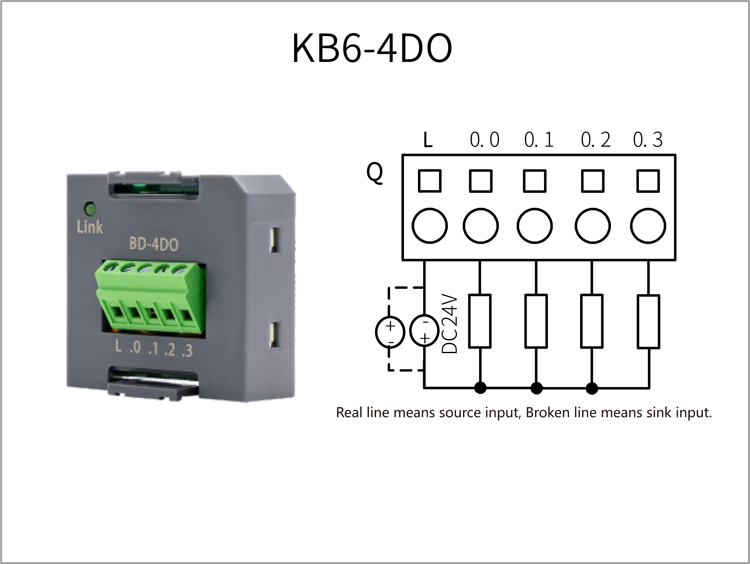

KB6-4DO |
Expansion Board, Discrete Outputs | N/A | 4 | N/A | Transistor | Spec Sheet (PDF) Software Download | 0 |
view here
|
|

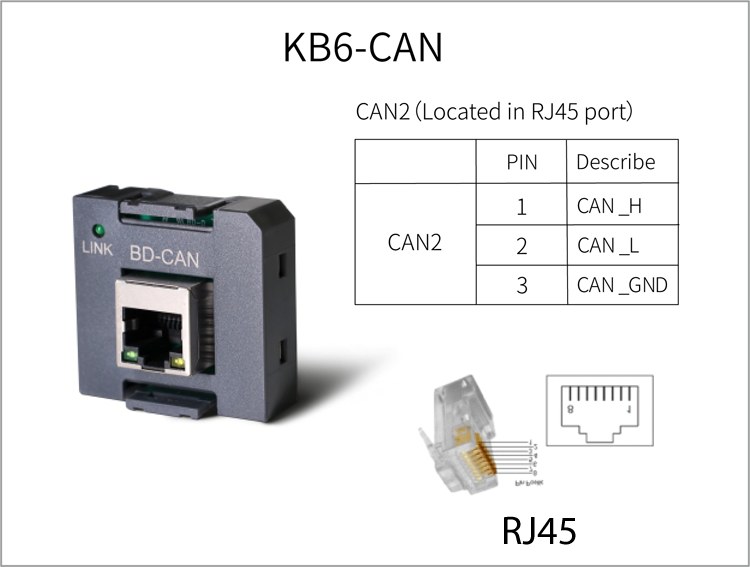

KB6-CAN |
Expansion Board, CAN Communication | N/A | N/A | N/A | N/A | Spec Sheet (PDF) Software Download | 0 |
view here
|
