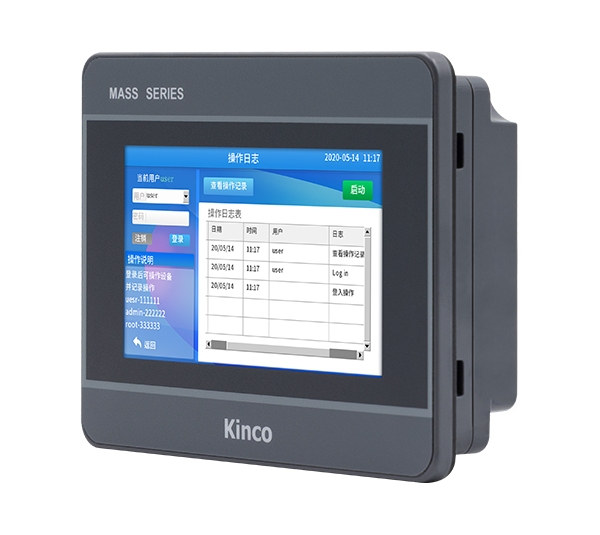

Màn hình cảm ứng HMI 4.3 inch Kinco M2043HE (2 COM, 1 Ethernet)
Thông số kỹ thuật
| Performance specification | ||
| Model | M2043H | M2043HE |
| Display size | 4.3″ TFT | |
| Display area | 95.04mm(W)×53.86mm(H) | |
| Resolution | 800x480px | |
| Display color | 16.7M true color | |
| Display angle of view | 80/80/80/80(left/right/up/down) | |
| Contrast ratio | 1200:1 | |
| Backlight | LED | |
| Brightness | 500cd/m2 | |
| Backlight life | 30000 hours | |
| Touch Panel | 4 line precision resistance network (surface hardness 4H) | |
| CPU | ARM Cortex-A7 Dual Core 1GHz | |
| Storage | 256MB Flash Memory + 128MB Memory | |
| RTC | Built-in RTC | |
| Extensible memory | None | |
| Printer port | Serial port | |
| Program download | USB Slave (Micro USB)/Serial port | |
| Ethernet | None | 10/100M self-adaption |
| Communication port | COM0:RS232/RS485/RS422; COM2:RS232 | |
| Electrical specification | ||
| Input power supply | DC10.8V~DC28V | |
| Rated power | 2W @24V DC | |
| Insulation resistance | Over 50MΩ@500V DC | |
| Hi-pot test | 500V AC 1 minute | |
| Structure specification | ||
| PCB | none | |
| Shell material | Engineering plastic | |
| Shape size(mm) | 132mm×102mm×33mm | |
| Cutout size(mm) | 119mm×93mm | |
| Weight | 0.21 Kg | |
| Environment specification | ||
| Operating temperature | 0～50℃ | |
| Operating humidity | 10～90% non-condensing | |
| Storage temperature | -20～60℃ | |
| Storage humidity | 10～90% non-condensing | |
| Shockproof test | 10~500Hz, 30m/s², X, Y, Z direction/hour | |
| Cooling method | Natural air cooling | |
| Certification | ||
| Degree of protection | Conforming to IP65 certification | |
| CE certification | EN61000-6-4:2007+A1:2011，EN61000-6-2:2005 | |
| Software | ||
| Configuration software | Kinco DTools V4.1 and above version | |
