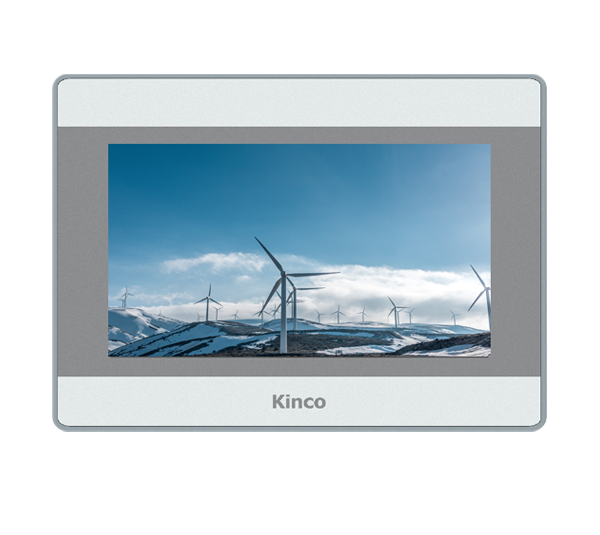

Màn hình cảm ứng HMI 7 inch Kinco MT070E-4G (3 COM, 1 USB Host, 1 Ethernet, tích hợp 4G)
Thông số kỹ thuật
| Performance specification | |
| Display size | 7″ TFT |
| Display area | 154.08mm(W)x85.92mm(H) |
| Resolution | 800*480 pixels |
| Display color | 256K color |
| Display angle of view | 70/70/50/70(left/right/up/down) |
| Contrast ratio | 500:1 |
| Backlight | LED |
| Brightness | 250cd/m2 |
| Backlight life | 50000 hours |
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) |
| CPU | ARM RISC 32Bit 792MHz |
| Storage | 128MB Flash Memory+64MB Memory |
| RTC | Built-in real time clock |
| Extensible memory | 1USB Host |
| Printer port | USB Host/Serial port |
| Program download | USB Slave (Micro USB)/ Ethernet |
| Internetwork | Ethernet/ Cellular 2G/3G/4G |
| Cellular and Wireless | LTE-FDD Band 1/3/5/8
LTE-TDD Band 38/39/40/41 UMTS Band 1/8 GSM Band 3/8 |
| Ethernet | 1*10/100M self-adaption |
| Communication port | COM0:RS232/RS485/RS422; COM1:RS485; COM2:RS232 |
| Electrical specification | |
| Input power supply | DC10V~DC28V |
| Rated power | 4.2W @24V DC |
| Allowable loss of power | <3ms |
| Insulation resistance | Over 50MΩ@500V DC |
| Hi-pot test | 500V AC 1 minute |
| Structure specification | |
| PCB | Exquisite spraying |
| Shell material | Engineering plastic |
| Shape size(mm) | 204mm*150mm*37mm |
| Cutout size(mm) | 192mm*138mm |
| Weight | 0.5 Kg |
| Environment specification | |
| Operating temperature | 0～50℃ |
| Operating humidity | 10～90% non-condensing |
| Storage temperature | -20～60℃ |
| Storage humidity | 10～90% non-condensing |
| Shockproof test | 10~500Hz, 30m/s², X, Y, Z direction/hour |
| Cooling method | Natural air cooling |
| Certification | |
| Degree of protection | Conforming to IP65 certification (4208一93) |
| CE certification | CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
| Software | |
| Configuration software | Kinco DTools V4.1 and above version |
