Màn hình cảm ứng HMI 10.4 inch Kinco MT5520T

264 lượt xem
Màn hình cảm ứng HMI 10.4 inch Kinco MT5520T
  • Màn hình cảm ứng HMI 10.4 inch Kinco MT5520T
  • 65536 True Color TFT LCD
  • 32-bit, 520MHz RISC CPU
  • 16MB FLASH + 32MB SDRAM
  • 512KB Recipe Memory
  • Real-Time Clock, Reserve Time for More Than 2 years at Power Off State
  • 3 COM Ports, Supports Simultaneous Communications, Supports RS232/RS485
  • 24 VDC Input Voltage
  • CE Certified
Chia sẻ:

Màn hình cảm ứng HMI 10.4 inch Kinco MT5520T

The MT5000 Series is a very powerful HMI product that will make your application soar. This HMI line come with a 65536 color display mode that gives your touch screen rich color and incomparable resolution. Each HMI supports simultaneous communications via its multiple serial ports, so that you may connect to different controllers at the same time. With the simple, convenient and powerful EV5000 configuration software, the user can master its design method and create first-class programs efficiently.

Note: MC&TT wants to provide our customers with a solution not just a product so we have great economical PLCs which are a perfect pair for the Kinco HMIs. If you purchase a PLC with a HMI the CBL-MT54-KC cable is needed.

MT5520T Series HMIs are LTSOH (Limited to Stock on Hand). The replacement series for these models is the “Green Series” HMIs. Please see part number F104E-CAN

Item Display Size CPU Flash SDRAM Serial Ports Expansion Port Expandable Memory Ethernet Downloads Price (USD) Quantity Discounts More
10.4" 520MHz 16MB 32MB 3 CANopen 2 USB Hosts,1 SD Card Slot 10/100 Base-T Spec Sheet (PDF) Software Download 0
IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

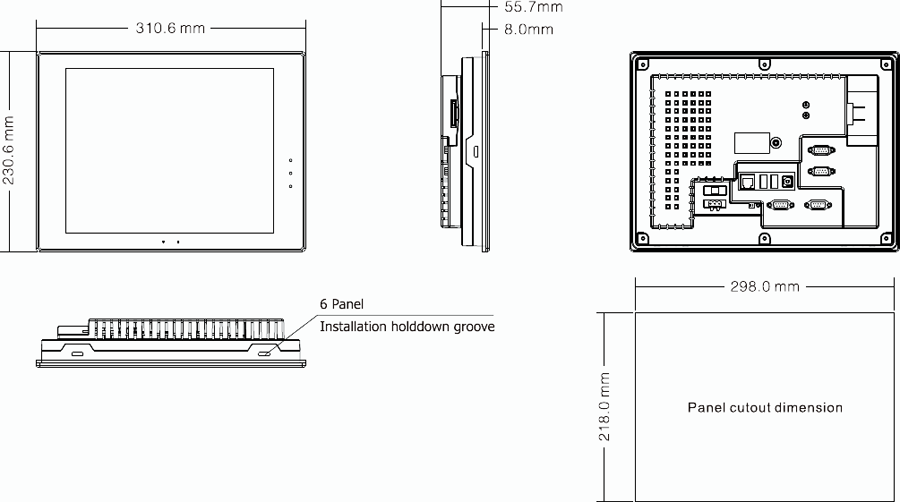

  • Dimensions
