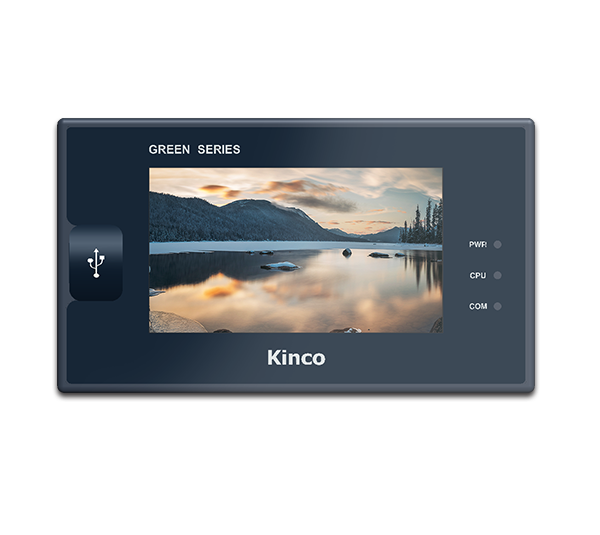

Màn hình cảm ứng HMI 4.3 inch Kinco GH043EU2 (2 COM, 2 USB Host, 1 SD Card, Ethernet)
Thông số kỹ thuật
| Model | GH043U2 | GH043EU2 |
| Performance specification | ||
| Display size | 4.3″ TFT | |
| Display area | 95.04mm (W) x53.86mm (H) | |
| Resolution | 480*272 pixel | |
| Display color | 16.7M true color | |
| Display angle of view | 70/70/50/70 (left/right/up/down) | |
| Contrast ratio | 500:1 | |
| Backlight | LED | |
| Brightness | 300cd/m2 | |
| Backlight life | More than 30000 hours | |
| Touch Panel | 4 wire precision resistance network (surface hardness 4H) | |
| CPU | ARM RISC 32Bit 800MHz | |
| Storage | 128MB NAND Flash Memory + 128MB DDR3 Memory | |
| RTC | Built-in real time clock | |
| Extensible memory | 2 USB Host | 2 USB Host + 1 SD Card |
| Printer port | USB Host*2/ serial port | |
| Ethernet | None | 10/100MHz self-adaption |
| Program download | USB Slave (Type B)/ U disk | USB Slave (Type B)/ U disk/ Ethernet |
| COM port | COM0: RS232/RS485/RS422; COM2: RS232 | |
| Serial port isolation | None | |
| Electrical specification | ||
| Rated power | 3.5W @24VDC | |
| Input power supply | DC10.8V~DC28V, Built-in isolation power supply | |
| Allowable loss of power | <3ms | |
| Insulation resistance | Over 50MΩ@ 500V DC | |
| Hi-pot test | 500V AC 1 minute | |
| Structure specification | ||
| PCB | Exquisite spraying | |
| Shell material | Engineering plastic | |
| Dimensions(mm) | 154*89*60 mm | |
| Cutout size(mm) | 146*81 mm | |
| Weight | 0.4Kg | |
| Environment specification | ||
| Operating temperature | -20° C ~ 55° C | |
| Operating humidity | 10～90% non-condensing | |
| Storage temperature | -25～60℃ | |
| Storage humidity | 10～90% non-condensing | |
| Shockproof test | 10~500Hz, 30m/s², X, Y, Z direction/hour | |
| Cooling method | Natural air cooling | |
| Certification | ||
| Degree of protection | Conforming to IP65 certification (4208一93) | |
| CE certification | Comply with EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005 | |
| Software | ||
| Configuration software | Kinco DTools V3.3 and above | |
