Động cơ AC Servo 1000W with brake Kinco SMH80S-0100-30ABK-3AKH
The SMH80S Series AC Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These motors boast peak torque values up to 1,350 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and come equipped with a 2,500 PPR incremental encoder. It is available in an 80mm square flange size, with a brake option.

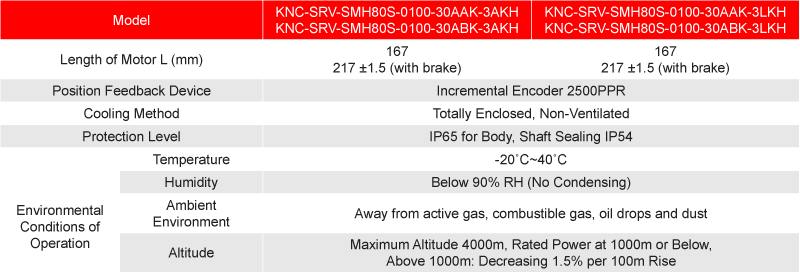

| Item | Rated Power (Watts) | Rated Torque (Nm) | Rated Speed (rpm) | Max Speed (rpm) | Rated Current (Arms) | Voltage | Length (mm) | Brake Option | Weight (kg) | Downloads | Price (USD) | Quantity Discounts | More |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMH80S-0100-30ABK-3AKH |
1000 | 3.18 | 3000 | 5500 | 10 | 120 VAC | 217 | Yes | 4.6 | Spec Sheet (PDF) Software Download | 0 |
view here
|
|
SMH80S-0100-30AAK-3AKH |
1000 | 3.18 | 3000 | 5500 | 10 | 120 VAC | 167 | No | 3.9 | Spec Sheet (PDF) Software Download | 0 |
view here
|
|
SMH80S-0100-30AAK-3LKH |
1000 | 3.18 | 3000 | 5500 | 6.3 | 220 VAC | 168 | No | 3.7 | Spec Sheet (PDF) Software Download | 0 |
view here
|
|
SMH80S-0100-30ABK-3LKH |
1000 | 3.18 | 3000 | 5500 | 6.3 | 220 VAC | 217 | Yes | 4.4 | Spec Sheet (PDF) Software Download | 0 |
view here
|
